SB003- Key programming by RH850 dump and ESL reset/ synchronization
Product Details
ABRITES software license for working with Subaru vehicles: replace faulty ESL by resetting and syncing second-hand ESL, or syncing a new ESL with Smart system and program keys.
The SB003 license allows working with Subaru vehicles with faulty ESL modules for key programming in All keys lost situations. Using it, you can get the info from the Smart system, replace the ESL with a new or a used one and program a smart key to the vehicle.
Functionalities:
Smart system data flash reading and programming new keys to the vehicle
Reset and synchronize second-hand ESL module with the Smart system
Synchronize the new virgin ESL with the Smart system
First, take the Smart system out of the vehicle and read its data flash on bench using the ZN085 ABRITES RH850/V850 Programmer. Then, use the read dump to prepare emulator TA68 (DST-AES) for the Smart system. With the TA68 emulator you can perform synchronisation between the Smart system and the new virgin ESL. You can also use a second-hand ESL module and then sync it with the Smart system. After syncing, you can learn new keys with the help of the ZN003 PROTAG Programmer.
Supported vehicles:
All keyless Subaru vehicles 2020+
Required hardware:

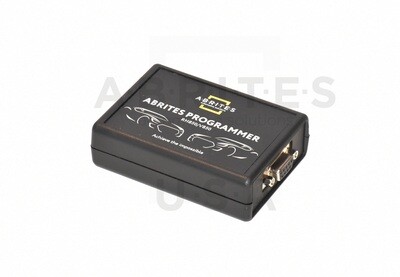

ZN085 ABRITES RH850/V850 Programmer
and the CB501 cable included in its set (for reading Data flash on bench)

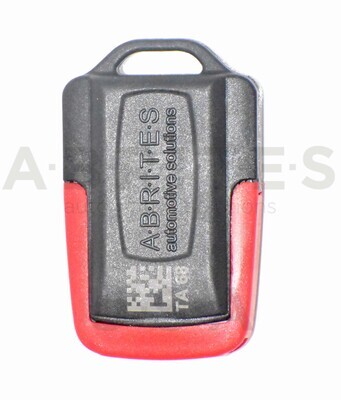

TA68 DTS-AES transponder emulator
(for ESL and Smart system sync)
ZN003 Protag V2 key and transponder programmer
(to program new keys)
AVDI with active AMS is required.
Please enter AVDI# in the notes section when checking out. This is required to complete the order processing.
The normal turnaround time for software link processing, is 1-2 business days.
ALL SOFTWARE SALES FINAL!
User of these products accepts full legal responsibilities for proper usage. These products are intended for legal use only. ABRITES USA does not condone or accept any responsibility for misuse of it's products.
Thank you.
