RR029 – Cluster Mileage Calibration for Renault Vehicles (incl. ABS ATE UDS 2020+)

The RR029 license allows mileage calibration in ABS ATE modules in vehicles manufactured after 2020, including Megane IV ph2 and Talisman ph2 models. It is an ideal solution when the ABS module is replaced and requires setting the correct mileage value.

Functionality:

• Mileage recalibration of ATE ABS UDS 2020+

Supported models:

• Megane IV ph2
• Talisman ph2
• Sandero III
• Jogger
• More related models

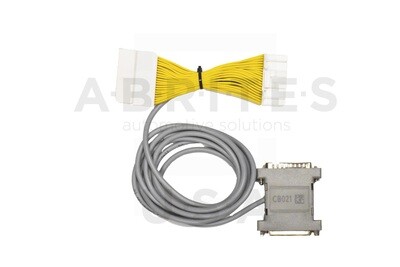

CB012 or CB021 cables are required to establish communication with the vehicle and complete the procedure.

Includes the full functionality of the legacy license RR028!

This special function supports mileage calibration by diagnostics in various Renault/Dacia/Samsung in both IC and ABS.
The RR028 now supports mileage calibration in Clio V with Calsonic Kansei/Marelli (mechanical pointers) dashboards by diagnostics, as well as Clio V Visteon (Low Line and High Line HD) dashboards already available in the legacy RR025 license, and other models included in the RR016 legacy license.

This functionality for mileage calibration in Clio V with Calsonic Kansei/Marelli (mechanical pointers) dashboards by diagnostics is ALREADY AVAILABLE NOW AND INCLUDED IN the RR025 license (also legacy).

Main functionalities:

• Instrument Cluster mileage calibration
• Instrument Cluster replacement
• ABS/ESC mileage calibration or reset to 0
• ABS/ESC replacement

Supported models:

• Clio V, Captur II, New Zoe, Arkana EU (Calsonic Kansei/Marelli, Visteon IC)
• Talisman, Megane IV, Scenic IV, Espace V, Kadjar (Visteon, VDO IC)
• Clio IV, Captur, Trafic III (Visteon IC)
• Logan II, Sandero II, Lodgy, Dokker (Visteon/JCI IC)
• Master III, Master III Ph2 (Visteon/JCI IC)
• Twingo III (monochrome Visteon/JCI IC)
• Megane III, Fluence (JCI, VDO IC)
• Laguna III (JCI IC)
• and more models

In order to perform the above-mentioned procedures for Clio V, Captur II, and New Zoe models, you will need the CB012 or CB021 cables.
For Master III Ph2 it's necessary to reset DAB (dashboard adaptation box, also known as gateway) separately.
When calibrating mileage in these dashboards, you can either disable dashboard synchronisation with the ABS or calibrate the mileage in it. The following ABS/ESC are supported:

• ATE UDS
• BOSCH UDS (reset to 0, after a few kilometres, the ABS will accept the IC value)
• ATE CAN
• BOSCH CAN

Requirements: AVDI with ACTIVE AMS
